You can have it all.

Your dream, the lifestyle you have worked so hard to achieve, is in your hands. It’s time to travel in style. It’s time to slow down and enjoy new sights and new friends. It’s time to take to the road in a coach that promises premium performance and enough storage to take it all with you. That’s living in luxury. That’s the 2010 Itasca Ellipse.

MODEL 2010 Itasca Ellipse

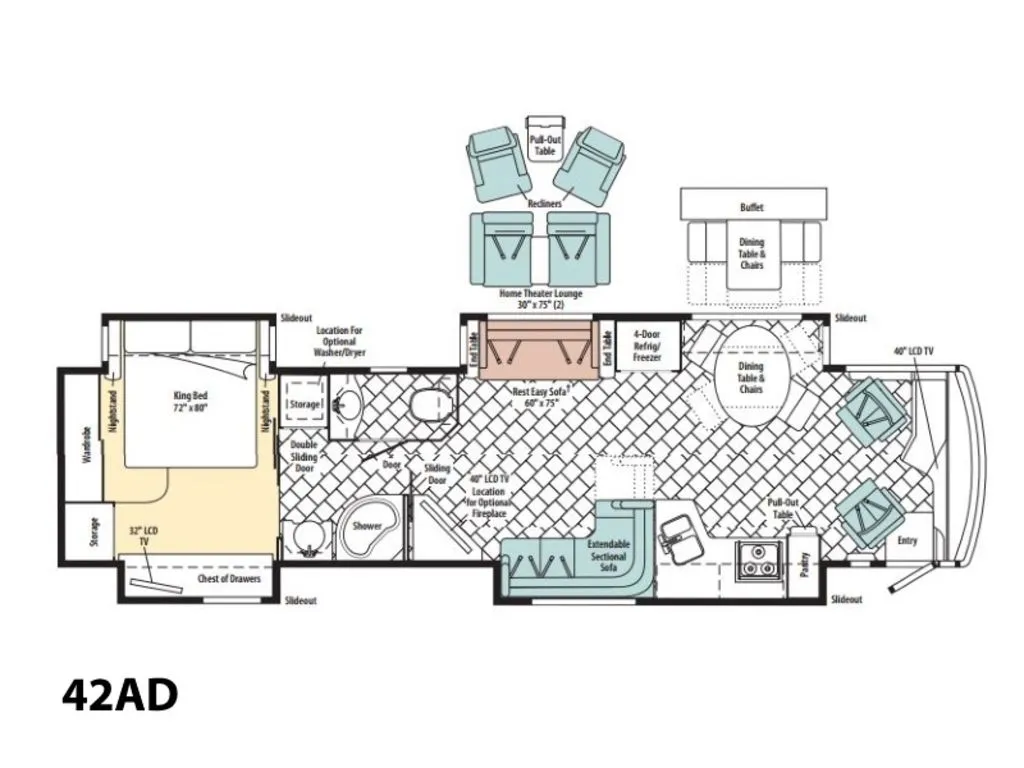

FLOOR PLAN 42AD

SLIDEOUTS 4

CHASSIS Freightliner Maxum

ENGINE Cummins ISL 6-cylinder, 400-horsepower @ 2,100 rpm, 1,200 pound-feet torque @ 1,300 rpm

TRANSMISSION Allison World 3000 6-speed automatic with two overdrive gears

AXLE RATIO 4.63 to 1

TIRES Michelin XZA3 275/80R 22.5 LRH

WHEELS 22.5-inch steel

WHEELBASE 279 inches plus tag

BRAKES Full air brakes with ABS drums

SUSPENSION front “” NeWay AS-140 air; rear “” NeWay ADL-123 air

SHOCK ABSORBERS Sachs tuned shocks

STEERING TRW integral hydraulic power gear with 55-degree wheel cut

ALTERNATOR 160-amp

BATTERIES chassis (2) “” 1900-amp; coach (4) “” deep-cycle marine/RV

INVERTER 2,000-watt

ELECTRICAL SERVICE 50-amp

AUXILIARY GENERATOR Cummins Onan diesel 10-kilowatt

EXTERIOR LENGTH 42 feet 11 inches

EXTERIOR WIDTH 101 inches

EXTERIOR HEIGHT 12 feet 4 inches

INTERIOR HEIGHT 7 feet

GROSS COMBINATION WEIGHT RATING (GCWR) 59,320 pounds

GROSS VEHICLE WEIGHT RATING (GVWR) 44,320 pounds

GROSS AXLE WEIGHT RATING (GAWR) front “” 14,320 pounds; rear “” 30,000 pounds

AS-TESTED WEIGHT (weighed with full water and fuel) front axle “” 13,520 pounds; rear drive axle “” 10,420 pounds; tag axle “” 10,760 pounds; total “” 34,700 pounds

OCCUPANTS AND CARGO maximum 9,799 pounds

FRAME CONSTRUCTION aluminum and steel

INSULATION polystyrene foam

FRESH WATER CAPACITY 90 gallons

HOLDING TANK CAPACITIES gray water (2) “” 105 gallons; black water “” 53 gallons

FUEL CAPACITY 150 gallons

FUEL REQUIREMENTS diesel

PROPANE CAPACITY 30 gallons

WATER HEATER Aqua-Hot

WATER SYSTEM demand

HEATING SYSTEM Aqua-Hot 450; 59,000-Btu

AIR-CONDITIONING SYSTEM (3) Coleman 13,500 Btu roof units with heat pumps

REFRIGERATOR Dometic 14-cubic-foot two-way (AC and LP gas) with ice maker and in-door water dispenser

TOILET Thetford porcelain
