The New 2025 Coachmen Cross Trail 20XG is an exciting new Class C motorhome uniquely designed for adventurers who want to venture beyond paved roads and into the heart of nature. As a standout model in Coachmen's innovative Cross Trail line, the 20XG floor plan (likely signifying an "eXtreme Ground Clearance" or "Xtra Ground Clearance" version) emphasizes rugged capability, a compact size, and versatile living spaces, making it an ideal choice for off grid exploration and outdoor enthusiasts.

If you are searching for a new Class C motorhome that is off road capable, nimble, and built on a reliable Ford Transit chassis for true adventure, the 2025 Coachmen Cross Trail 20XG presents excellent value and a dynamic travel experience in the new RV market.

2025 Coachmen Cross Trail 20XG Specifications: Your Rugged Adventure Class C Motorhome

Overview & Key Features:

• Rugged & Off Road Capable: The 20XG floor plan is specifically engineered for adventure, often featuring increased ground clearance, all terrain tires, and robust exterior protection, allowing it to tackle less maintained roads.
• Compact & Maneuverable: Measuring approximately 22 feet in length, this Class C motorhome is designed for easy driving, parking, and navigating challenging terrain where larger RVs cannot go.

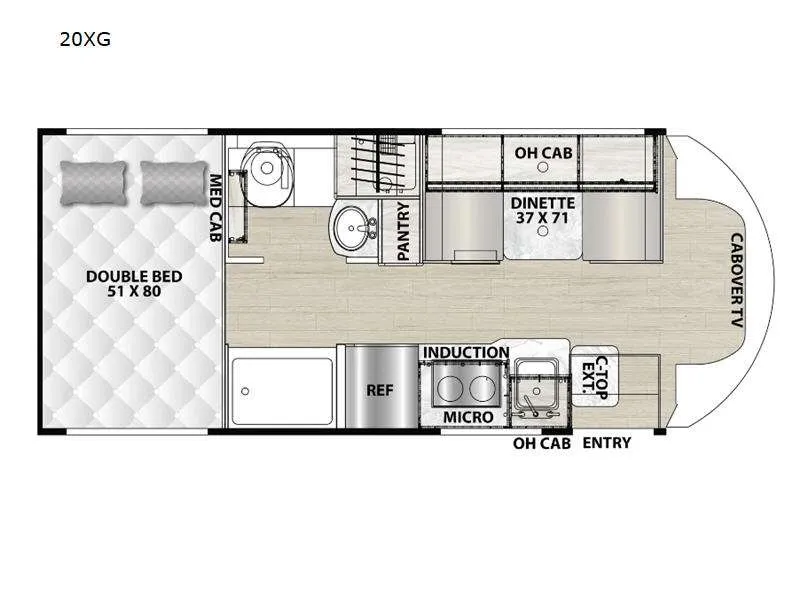

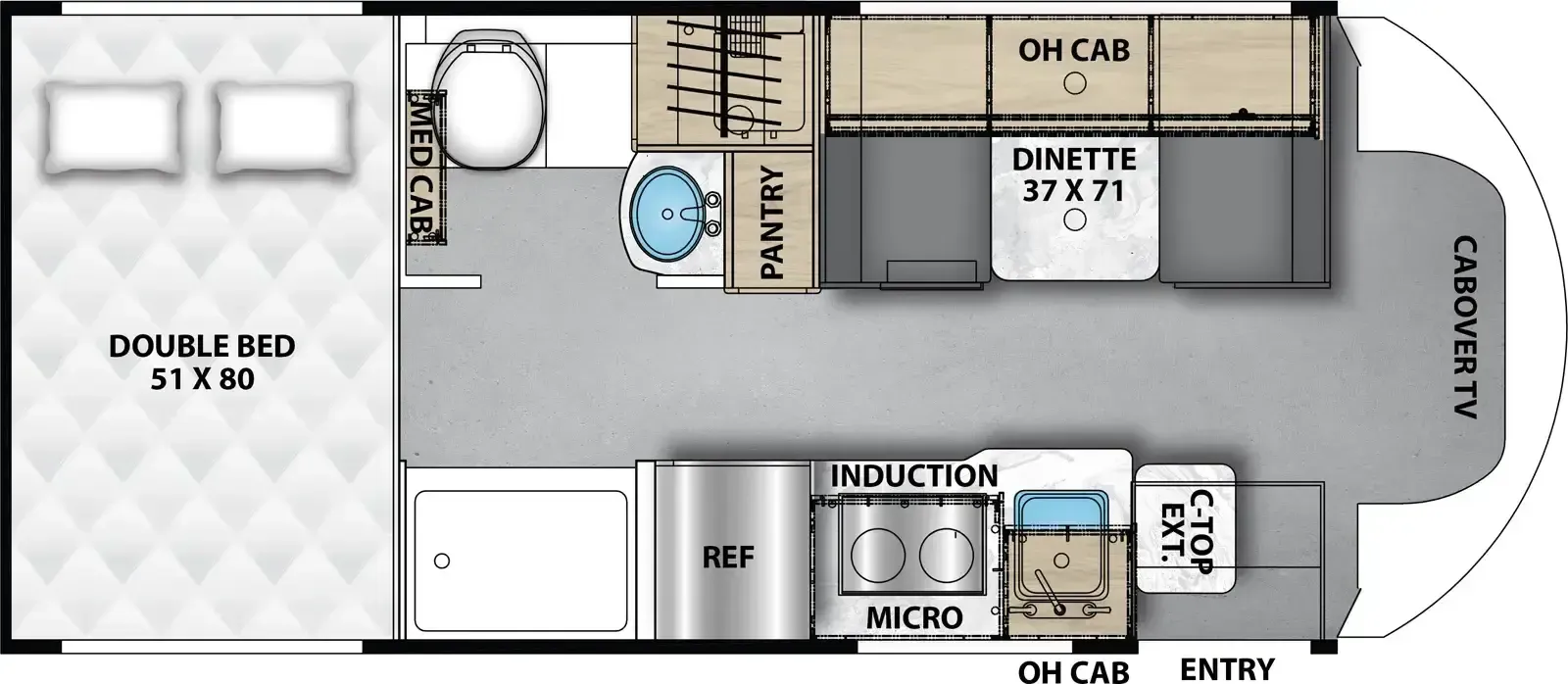

• Versatile Interior Layout: Despite its compact size, the 20XG offers smart space utilization with a flexible living area that converts for sleeping, a functional kitchen, and a rear full bathroom.
• Built for Boondocking: Designed with features to support extended off grid living, including efficient power systems and generous tank capacities for its class.
• Ford Transit Chassis: Provides a reliable and well performing foundation with car like handling.

Chassis & Engine: Power for Any Path

• Chassis: Ford Transit 350 HD Chassis (or similar heavy duty variant of the Transit platform). This chassis is known for its durability and capability for off road RVs.

• Engine: Powered by the Ford 3.5L EcoBoost V6 gasoline engine (or 3.5L PFDi V6, depending on production). Horsepower: Often around 310 HP (EcoBoost) or 275 HP (PFDi).

• Torque: Often around 400 lb ft (EcoBoost) or 260 lb ft (PFDi).

• Transmission: 10 speed automatic transmission.

• Fuel Capacity: 25 gallons.

• Towing Capacity: 5,000 lb hitch capacity with 7 way plug (pre wired).

• All Wheel Drive (AWD) Option: Cross Trail models often have AWD available, enhancing traction and off road capability.

Dimensions & Weights:

• Exterior Length: Approximately 22 ft 0 in to 22 ft 6 in.
• Exterior Width: 7 ft 5 in (89 inches).
• Exterior Height (with A/C): 10 ft 10 in to 11 ft 0 in (includes increased ground clearance).
• Interior Height: 6 ft 8 in (80 inches).
• GVWR (Gross Vehicle Weight Rating): 10,360 lbs.
• GCWR (Gross Combined Weight Rating): 13,500 lbs.
• Exterior Storage: Ample exterior storage compartments for gear.

Tank Capacities:

• Fresh Water Capacity: 30 40 gallons.
• Grey Water Capacity: 20 30 gallons.
• Black Water Capacity: 20 30 gallons.
• LP Tank Capacity: 9.8 gallons (approximately 41 lbs).
• Water Heater Type: Tankless Water Heater (provides continuous hot water).

Appliances & Utilities:

• Refrigerator: 12V 8 cu ft Refrigerator.
• Cooking: 2 burner LP cooktop. Convection Microwave oven.
• Furnace BTU: 20,000 BTU.
• AC BTU: 13,500 BTU roof A/C.
• Electrical Service: 30 Amp shore power.
• Generator: 2.8 kW Cummins Onan LP generator (standard).
• Awning: Power Patio Awning with LED Lighting.
• Entertainment: LED TV in living area. AM FM Bluetooth Stereo.
• Solar Prep: 200W Solar Panel with charge controller (often standard for off grid RVing).

Construction & Exterior:

• Construction: Azdel composite sidewall construction. Aluminum framed laminated construction for walls, roof, and floor.
• Exterior Finish: High gloss fiberglass exterior. Automotive windshield.
• Roof: One piece TPO roof.
• Ground Clearance: Designed with increased ground clearance for off road adventures.
• Tires: All terrain tires (e.g., BFGoodrich K02 all terrain tires).
• Mirrors: Power heated mirrors.
• Other: Roof ladder prep. Rear hitch for bike rack or light towing.

Interior Features:

• Flooring: Durable vinyl flooring throughout.
• Cabinetry: High gloss cabinetry with solid surface countertops.
• Living Area: Flexible seating (dinette, sofa) converts for sleeping. LED interior lighting. Roller shades.
• Kitchen: Functional galley with sink, cooktop, and microwave.
• Bedroom: Integrated sleeping area (often a rear bed or convertible dinette).
• Bathroom: Full rear bath with shower, toilet, and sink. Power vent.
• Cockpit: Driver passenger swivel seats. Touchscreen dash radio. Cruise control. Tilt steering wheel.
• Convenience: Monitor panel. USB charging ports.
