2025 Dynamax Corp Isata 5 28SS

NewClass C|472 mi|Stock #5515|Located at McKee RV in Perry, IA
$217,499$310,713
Save $93,214

Dynamax isata 5 Super C diesel motorhome 28SSD4X4 highlights:

  • Ram 5500 SLT Chassis - 4 Wheel Drive

  • Cummins 6.7 - 360Hp / 800 lb-ft of Torque

  • Aisin - 6 Speed Transmission

  • 10,000 lbs Towing

  • Cab-Over Bed

  • Dinette Booth

  • Refrigerator - 10 cu. ft. - 12V

  • **Xplorer Package: **Lithium Ion Batteries (400Ah) - Solar (950W) - Enhanced Insulation (Heated Bays, Thermal Foil Insulation, Dual Pane Windows, Insulated Cab Curtains.

Over $14,000 In Options!

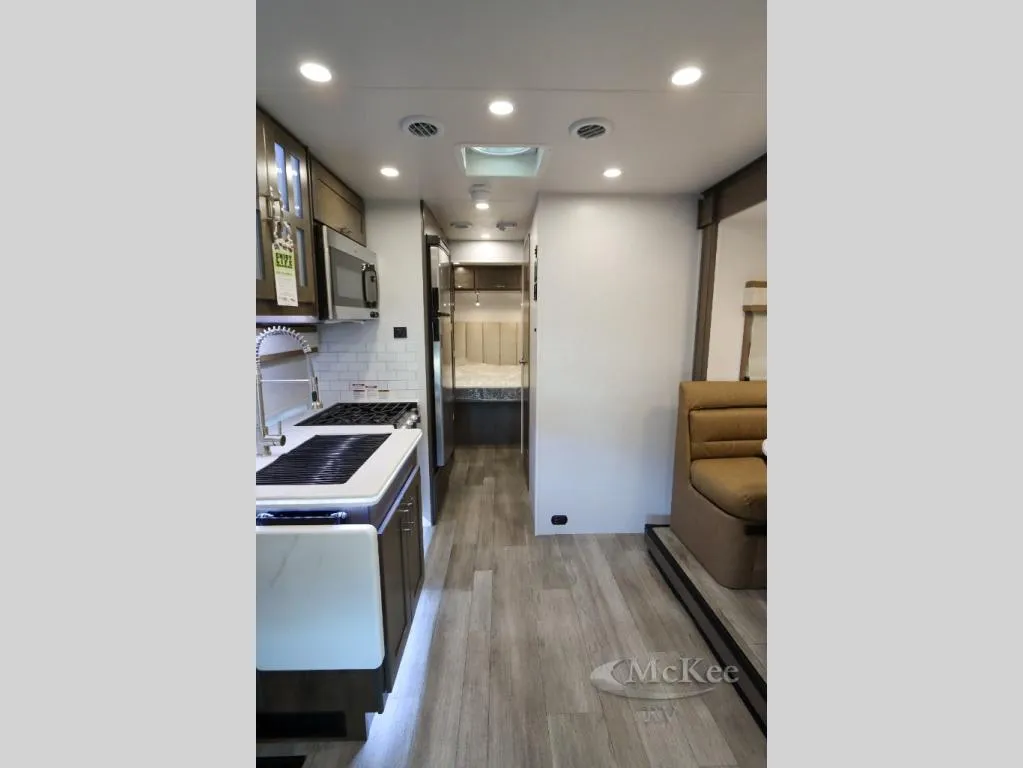

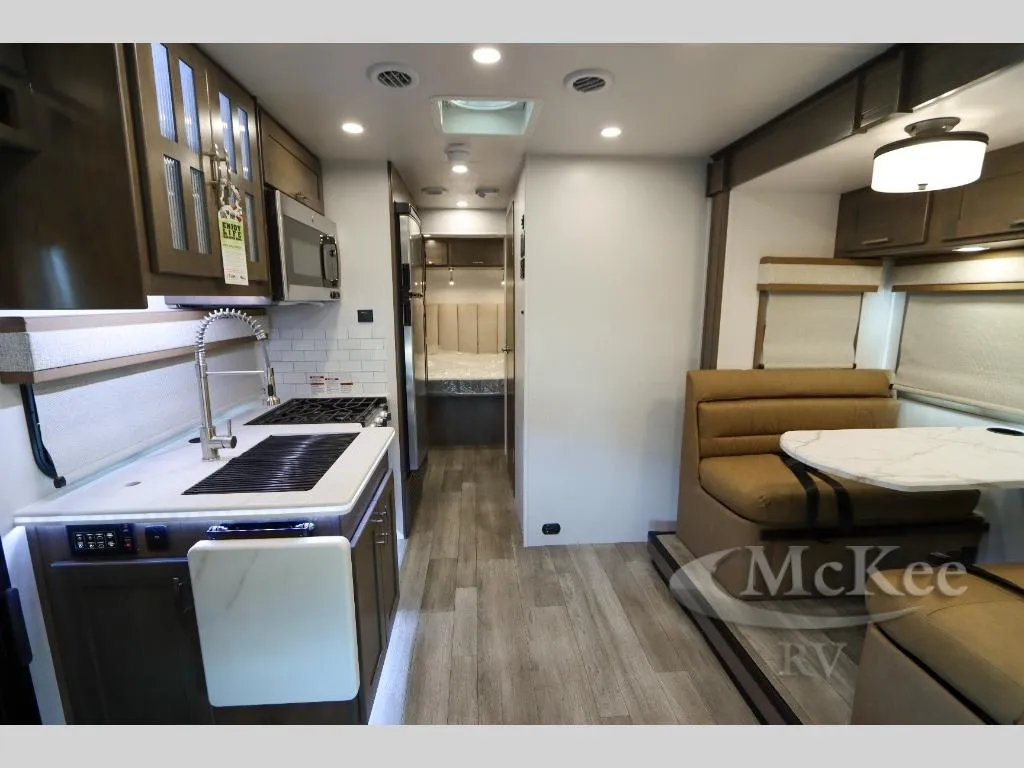

Pick a spot on the map and start traveling there in comfort with this motorhome! The rear private bedroom has a 60" x 75" gel-infused memory foam mattress for a good night's rest, LED reading lights, USB charging ports to charge your electronics while you recharge, and a 32" LED smart TV to watch movies in true comfort. The full bathroom has a designer shower with a skylight above for added head room and natural lighting and an Oxygenics body spa RV shower head for an even better showering experience on the road. The kitchen has everything you could need to prepare delicious home cooked meals including a countertop extension for more meal prepping space, and you can enjoy all of your meals at the booth dinette slide which can also transform into an extra sleeping space!

Each one of these Dynamax isata 5 Super C diesel motorhomes offer control, comfort, and stability thanks to the Ram 5500 SLT chassis with factory 4-wheel drive! They are powered by a Cummins 6.7L I6 turbo diesel engine and an AISIN HD 6-speed automatic transmission. Their construction consists of 2" aluminum-framed, laminated sidewalls with block foam insulation, composite exterior fiberglass, and a composite flooring substrate that is lightweight and moisture resistant. You will see their attention to detail everywhere you look including ambient lighting, premium cut and buffed paint finish, and a water filtration system for clean water where ever you go. They even have a single 190 watt solar panel with a 30 amp controller so you can go off the grid. Come check out your favorite model today!

Specifications

Dry weight

16,203 lbs

Sleeps

6 people

Slideouts

1

Odometer

472 miles

Unit features & options

  • Ram 5500 SLT Chassis- Factory 4-Wheel Drive
  • Cummins 6.7L I6 Turbo Diesel Engine (360hp/800 ft.-lbs. of Torque)
  • AISIN HD 6-Speed Automatic Transmission
  • 52-Gallon Fuel Tank
  • 9-Gallon Diesel Exhaust Fluid Tank
  • Trailer Hitch (10,000 Tow lbs./750 tongue lbs. ) with 7-Way Round Tow Connection
  • Remote Start System
  • Lane-Keep Assist
  • Active Brake Assist
  • Adaptive Cruise Control
  • Ram OEM Trailer Brake Control
  • Cummins Smart Exhaust Brake System
  • Ram ESC Suspension and Stability Package
  • DynaRide+ Upgraded Suspension System featuring Four-Point Bilstein Gas-Charged Shock Absorbers and Rear MORryde RSX Rubber Shear Springs with Heavy-Duty Rear Sway Bar
  • Momentary Battery Booster Switch for Connecting Chassis and House Batteries
  • Dual 12V Chassis Batteries
  • Dual 220-Amp Alternators (440 Total Amps)
  • 4-Wheel ABS
  • B-20 Bio Diesel Capability
  • Ram 50KSI Chassis Construction
  • Aluminum Running Boards
  • Aluminum Wheels (set of four)
  • Front and Rear Tires: 225/70R19.5G (All Position Front And Rear Traction)
  • Single Front Wheels and Dual Rear Wheels (19.5" x 6")

Full specifications

AC BTU30000 btu
Available BedsRV Queen
Awning Info16' Armless w/LED Lighting and Motion Activated Retraction
Axle Weight Front7250 lbs
Axle Weight Rear13500 lbs
Black Water Capacity45 gals
ChassisRam 5500 SLT
Convection CookingYes
Cooktop Burners3
Electrical Service50 amp
EngineCummins 6.7L I6 Turbo
Ext Height12 ft 4 in
Ext Width8 ft
Exterior ColorXPLORER DARK
Fresh Water Capacity78 gals
Fuel Capacity52 gals
Fuel TypeDiesel
Furnace BTU40000 btu
GVWR19500 lbs
Generator8KW Onan Diesel
Grey Water Capacity45 gals
Gross Combined Weight37500 lbs
Hitch Weight10000 lbs
Horsepower360 hp
Int Height6 ft 10 in
Interior ColorDRIFTWOOD - DESERT DECOR
LP Tank Capacity20.3 gals
Length31 ft 2 in
Mileage472 mi
Miles472
Number Of Bunks1
Number of Awnings1 ft
Refrigerator Size10 cu ft
Refrigerator Type12V Two Door Compressor Driven
Shower TypeStandard
Sleeps5
Slides1
TV InfoLR 39" LED Smart TV, BR 32" LED Smart TV
Tire Size225/70R19.5G
Torque800 ft-lb
Water Heater TypeTruma Aqua Go Comfort On Demand
Wheelbase217 in
