Engine manufacturer TYM AN IDI Type

Natural Aspiration

Gross engine power 24 hp

PTO power 21 hp |15.7 kW

Rated engine speed 2100 rpm

No. of cylinders 3

Displacement 104.5 cu. in. |1714 cc

Air cleaner Dry Element

Alternator 12V 50A

Fuel system IDI

Transmission type HST

No. of speeds 3-Range

Max.traveling speed 15.2 mph |24.5 kmph

Brakes Wet, Multi-disc

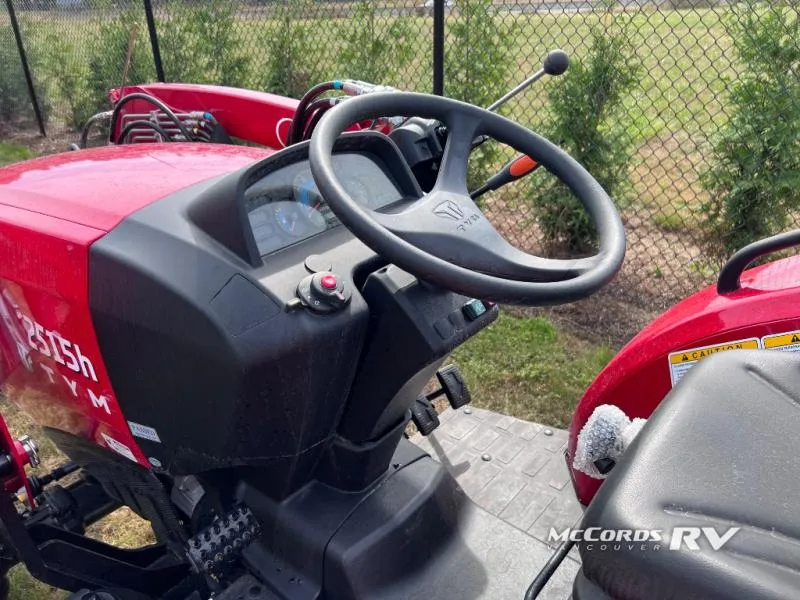

Steering Hydrostatic

Clutch No

Fuel tank 7.1 gal |27 L

Coolant 5.3 qt |4.9 L

Crankcase 4.5 qt |4.2 L

Transmission/Hydraulics system 9.8 gal | 37.1 L

Front axle 1.7 qt | 1.6 L

PTO type Independent

PTO control Wet, Multi-disc

PTO rear 540 rpm

Pump type Single Gear Pump

Implement ow 4 gpm | 15.1 l/min

Steering ow 7.5 gpm | 28.4 l/min

Total ow 11.5 gpm | 43.5 l/min

Category, -point hitch I

Hitch lift capacity 3306 lb | 1500 kg

Hitch lift capacity at 24 inches behind link ends 2425 lb | 1100 kg

Lift control type Position

No. of standard remote valves Optional (up to 4)

Overall length with -point hitch 120.9 in. | 3071 mm

Overall width 56.3 in. | 1430 mm

Wheelbase 65.7 in. | 1670 mm

Height to top of ROPS 97.3 in. | 2471 mm

Min. ground clearance 14.4 in. | 366 mm

Min. turn radius with brakes 7.5 in | 2.3 mm

Min. turn radius without brakes 104.7 in | 2659.4 mm

Weight with ROPS 2969 lb | 1347 kg

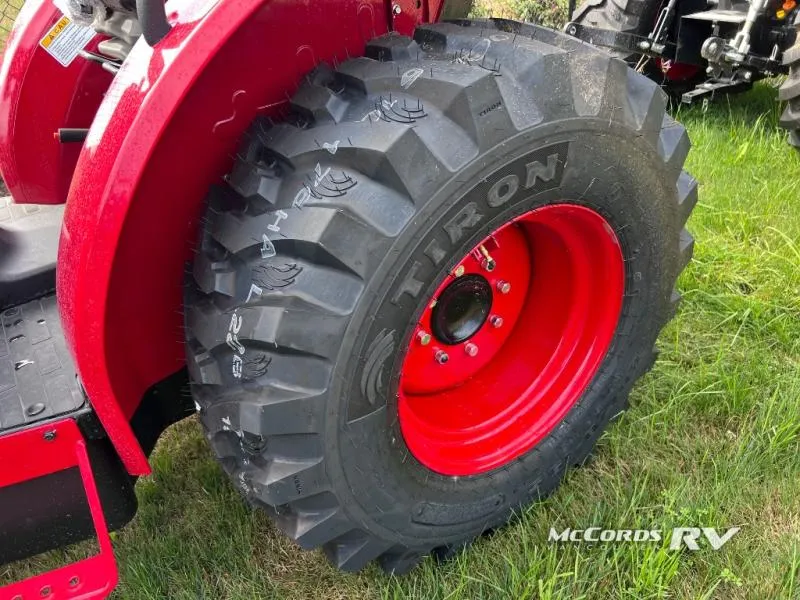

R1 Agricultural - Front 8-16

R1 Agricultural - Rear 12.4-24

R4 Industrial - Front 25x8.50-14

R4 Industrial - Rear 15x19.5
