Sunseeker LE 2350LE (C2350ALEF):

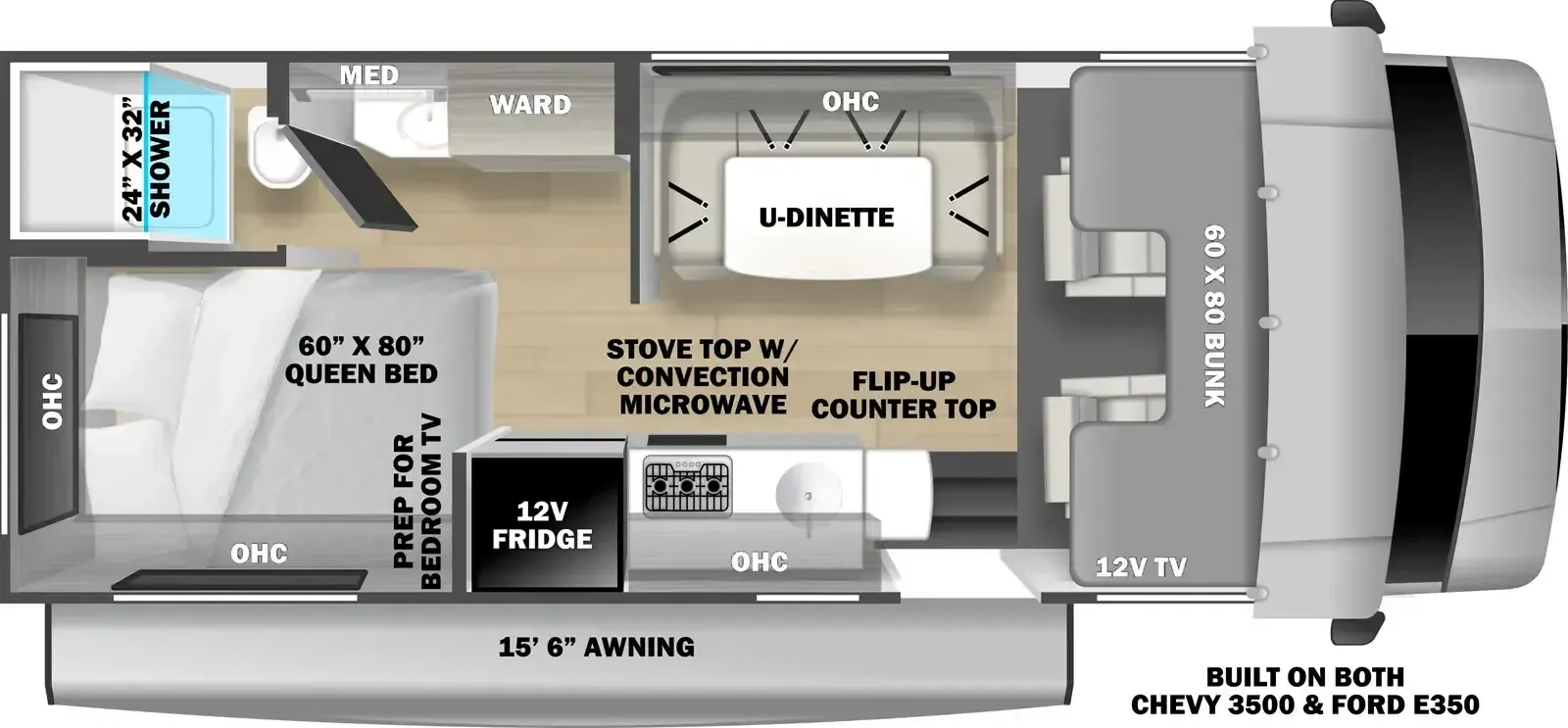

Key Features & Layout:

• Floor Plan: Features a U-shaped dinette in the main living area, a central kitchen, and a rear private bedroom with a queen bed that can be sectioned off with a privacy curtain. The bathroom is typically included in this rear section, creating a "master suite" feel.
• Sleeping Capacity: Typically sleeps 6 people (queen bed, U-shaped dinette converts to a bed, and a large bunk over the cab).
• Slides: 1 slide-out (for the U-shaped dinette).
• Cab-Over Bunk: A significant 60" x 80" (or similar) bunk over the cab provides additional sleeping or storage space.

Chassis & Engine:

• Chassis: Available on either a Ford E-350 or Chevy 3500 chassis. Ford E-350: Engine: 7.3L V8 Gasoline.

• Horsepower: 350 hp.

• Torque: 468 lb-ft.

• Fuel Capacity: 55 gallons.

• Wheelbase: 158 inches.

• Hitch Rating: 5,000 lbs.

• Chevy 3500: Engine: Gasoline (specifics may vary but generally similar output to Ford).

• Fuel Capacity: 57 gallons.

• Wheelbase: 159 inches.

• Hitch Rating: 5,000 lbs.

Dimensions & Weights:

• Length (Exterior): Approximately 24 ft 6 inches (Ford E-350) or 25 ft 0 inches (Chevy 3500).

• Exterior Width: 8 ft 5 inches (101 inches).

• Exterior Height: 11 ft 3 inches.

• Hitch Weight: 5,000 lbs (on E350/Chevy 3500).

• GVWR (Gross Vehicle Weight Rating): Ford E-350: 12,500 lbs.

• Chevy 3500: 12,300 lbs.

• GCWR (Gross Combined Weight Rating): Ford E-350: 18,000 lbs.

• Chevy 3500: 20,000 lbs.

• LP Tank Capacity: 41 lbs.

Tank Capacities:

• Fresh Water Capacity: 44 gallons.
• Grey Water Capacity: 39 gallons.
• Black Water Capacity: 39 gallons.
• Water Heater Capacity: 6 gallon DSI (Direct Spark Ignition) Gas/Electric Water Heater.

Appliances & Utilities:

• Refrigerator: 10.7 cu ft 12V refrigerator.
• Cooktop Burners: Recessed 3-burner range with flush glass cover.
• Microwave Oven: 1.3 cu ft convection microwave.
• Furnace BTU: 30,000 BTU.
• AC BTU: 15,000 BTU ceiling ducted, ultra-quiet roof air with heat pump.
• Electrical Service: 30 amp service with power cord. 60 Amp Progressive Dynamics converter.
• Generator: 4.5 KW Gas generator (Ford/Chevy only).
• Awning: Power patio awning with LED light strip (approx. 15' 6").
• Entertainment: 12V LED flat panel adjustable side TV in the living room. In-dash premium sound system with Bluetooth.
• Solar Prep: Side-mounted solar prep connection. Optional 190 Watt roof-mounted solar powered 12V charging system.
• Connectivity: Winegard Air 360+ digital antenna with Gateway 4G Wi-Fi capability. Cordless 12V charging plate in the kitchen.

Construction & Exterior:

• Construction: 2" Aluminum framed laminated sidewalls. Superlite composite substrate. Block foam insulation.
• Exterior Finish: Gel Coat exterior fiberglass. One-piece fiberglass front cap.
• Roof: Fiberglass roof.
• Storage: Roto-cast storage compartments.
• Running Boards: Aluminum running boards.
• Windows: Tinted sliding windows.
• Hitch: 5,000 Lbs. hitch, 7-pin connector (E350/Chevy 3500).
• Entry Step: Integrated entry step.
• Slide-out Awnings: Yes (toppers for the slide outs).
• Other: LP quick connect. Black tank flush. On-The-Go Ladder Bracket (most models). Driver side security light.

Interior Features:

• Interior Height: 7' interior living height.
• Kitchen: Recessed 3-burner range with flush glass cover. 1.3 Cu. ft. convection microwave. 10.7 Cu. ft. 12V refrigerator. Soft touch self-closing drawer guides. Cordless 12V charging plate. Flip-up countertop extension.
• Bathroom: Electric roof fan. Oxygen-infused shower head with flexible extension. Shower skylight.
• Living Room: U-shaped dinette with two large storage drawers. Convertible dinette for additional sleeping capacity. Black out roller shades. Child seat head tethers in dinette. Maxx Air multi-speed power fan with cover.
• Bedroom: Queen bed with privacy curtain. Black-out roller shades. Bedroom TV prep.
• Cab Area: Power windows and door locks. Keyless entry (N/A Chevy). Backup camera/side view cameras with 3-way monitor.
• Systems: Battery disconnect. Water heater bypass. (1) Deep cycle coach battery (optional 2 batteries). LED lighting. Easy Access battery in step-well. Emergency start switch. Satellite/cable connection.
• Safety: CO, LP and smoke detector. Fire extinguisher.

Optional Packages (Common Examples):

• LE Premier Package: Often includes many of the desirable features listed above as standard, such as fiberglass front cap, aluminum running boards, 13.5K AC, slideroom toppers, Winegard 360+ w/ Gateway WIFI Prep, in-dash premium sound system w/ Bluetooth, Back Up Camera, 10.7 CU 12 volt Refrigerator, 32” 12 Volt Smart TV, 2 Coach Batteries.
• Arctic Package: Includes 12V tank heaters for heated, enclosed holding tanks and valves.
• Dual A/C with heat pump: With power shedding system (most models).
• Automatic leveling system (4-point): (N/A on Chevy chassis).
